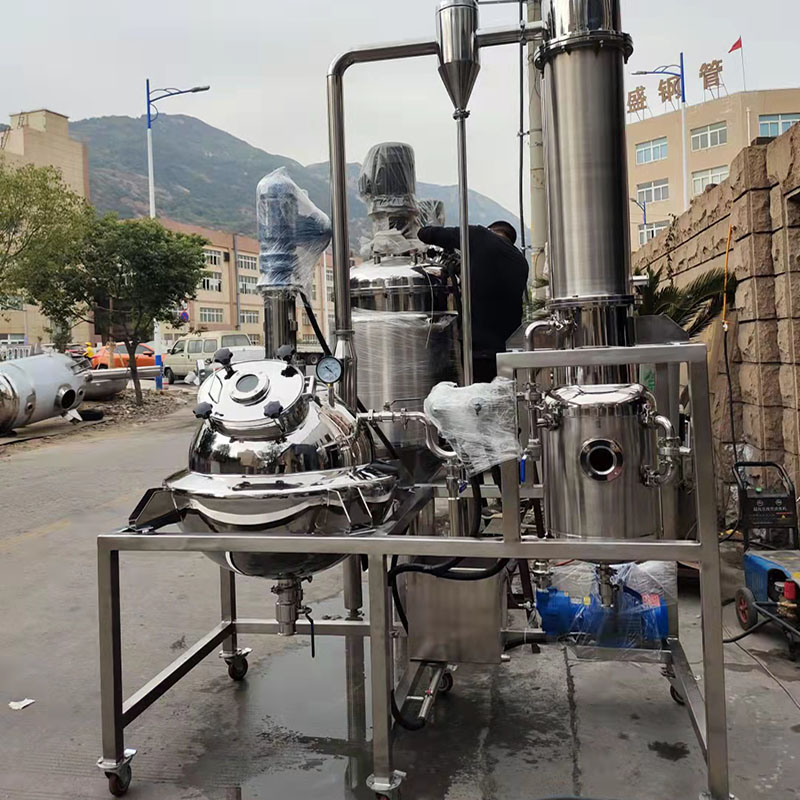

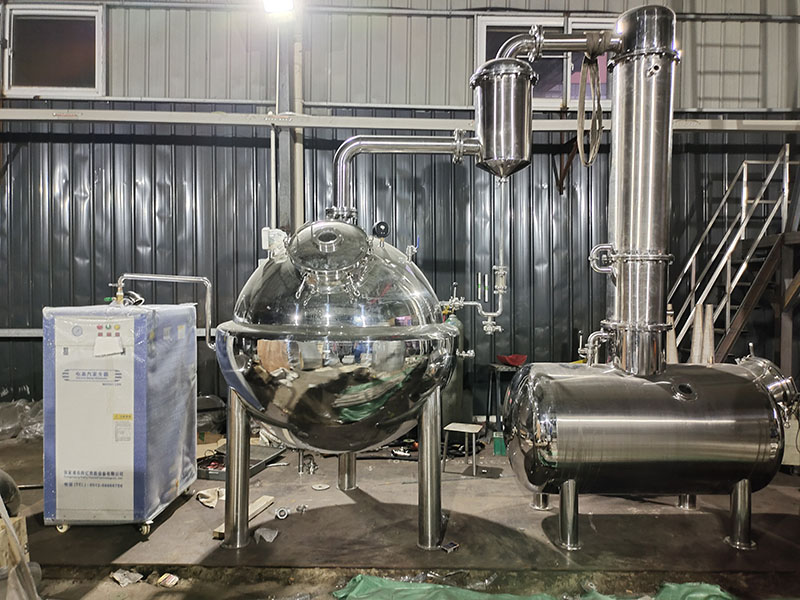

Ball concentrator

The spherical concentrator is mainly composed of four parts: the main body of the spherical concentrator (a stamping process), the condenser, the vapor-liquid separator and the liquid receiver, which can be used for the concentration, distillation and recovery of organic solvent in pharmaceutical, food, chemical and other industries. Due to the use of vacuum concentration, the concentration time is short, and will not destroy the effective composition of the heat sensitive material. The contact parts of the equipment and materials are made of stainless steel, with good corrosion resistance, durability, in line with GMP, FDA,QS certification requirements, the paste ratio is significant, up to 1.3-1.4, can be configured to stir.

Main configuration parameters of spherical concentrator

1. The equipment is composed of a main concentration tank (with jacket and insulation), a vapor-liquid separator, a condenser, a vacuum liquid receiving tank and internal connecting pipes.

2. The main enrichment tank is a ball shape formed by a single stamping, with vertical legs installed and a secondary steam outlet at the top. The tank is equipped with a sanitary quick-opening manhole, feed port, discharge port, air outlet, thermometer, sight light, sight mirror, 360° universal rotating cleaner and other functional pipe ports.

3. The volume of the equipment is 300L-1000L, which can be made non-standard according to user requirements. The design pressure in the tank is -0.1MPa, the design pressure of the jacket is 0.3MPa, and the design temperature is 140 degrees.

4. All materials are s30408, using anti-aging pearl cotton or high temperature polyurethane foam insulation, insulation layer thickness δ = 50mm.

5. The vapor-liquid separator is set up to effectively separate the water and water, without running the material, and the liquid naturally reflow

6. Configure tubular condenser and coil cooler, and the material of vacuum liquid collection tank is S30408.

7. The inner surface of the container is less than 0.6um, and the outer surface is treated with mirror or matte finish.

8. Random delivery of sanitary cleaners, vacuum pressure gauges, thermometers, and other accessories. 1. The equipment is composed of a main concentration tank (with jacket and insulation), a vapor-liquid separator, a condenser, a vacuum liquid receiving tank and internal connecting pipes.
