The low-temperature vacuum concentration equipment is suitable for further concentrating traditional Chinese medicine extracts or concentrates to achieve high concentration and ointment collection.

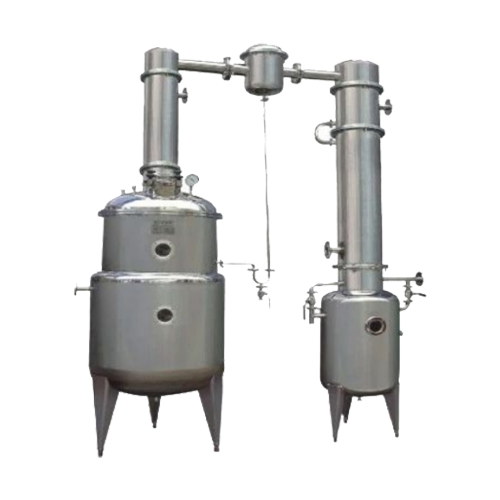

Low temperature vacuum concentration equipment
The low-temperature vacuum concentration equipment is suitable for further concentrating traditional Chinese medicine extracts or concentrates to achieve high concentration and ointment collection. It is also suitable for low-temperature vacuum concentration of food juices and heat-sensitive materials. It is also suitable for concentrating high-viscosity materials that are difficult to flow and can be dynamically stirred. The material does not scale, and the specific gravity of the ointment can reach more than 1.4. At the same time, the solvent can be effectively recovered. When concentrated under positive pressure, it can be used for fermentation and distillation. One machine has multiple uses. It has all the ingredients for mixing, reaction and recovery. It is suitable for GMP, FDA, QS certification requirements.
一、Main configuration parameters of low-temperature vacuum concentration equipment
1. Low-temperature vacuum concentration equipment consists of a concentration tank (jacketed and insulated), a stirring system (configured according to user requirements), a vapor-liquid separator, a condenser, a vacuum liquid collection tank and internal connecting pipes.
2. The low-temperature vacuum concentration equipment has a spherical or elliptical head shape formed by one-time stamping. It has a vertical leg structure. The top head has a secondary steam outlet. The tank is equipped with a quick-open manhole, a thermometer, a sight light, and a sight glass. , 360° universal rotating cleaning ball, inlet and outlet, emptying port, and other functional nozzles, etc.
3. The design pressure of the equipment is -0.09MPa, and the design pressure of the jacket is 0.3MPa.
4. The material is s30408/31603, the outer skin is fully welded with stainless steel, and the insulation is made of anti-aging pearl cotton or high-temperature-resistant polyurethane foam. The thickness of the insulation layer is δ = 50mm.
5. The inner surface of the container is mirror polished, and t
| Specifications and models | ZN-100 | ZN-200 | ZN-300 | ZN-500 | ZN-700 | ZN-1000 |
| volume(L) | 100 | 200 | 300 | 500 | 700 | 1000 |
| Evaporation capacity(kg/h) | 40 | 60 | 80 | 100 | 130 | 160 |
| Jacket pressure(MPa) | 0.09 | |||||
| Vacuum degree(MPa) | 0.09 | |||||
| Heating area(m²) | 0.6 | 0.8 | 1.1 | 1.2 | 2 | 2.5 |
| Condensation area(m²) | 2 | 3 | 4 | 5 | 6 | 7 |
| cooling area(m) | 0.3 | 0.4 | 0.5 | 0.8 | 1.2 | 1.6 |
| Motor Power(kw) | 0.55 | 0.75 | 1.1 | 1.5 | 2.2 | 3.0 |
| Rotating speed(r/min) | 36 | |||||
