continuous spray machine

HY-PL series continuous spray machineContinuous spray sterilization machine absorbs Germany, Italy, Taiwan and other similar equipment technology out of the new design. The three-stage treatment of circulating hot water spray sterilization, warm water precooling and cold water cooling, the steriliza

Product description

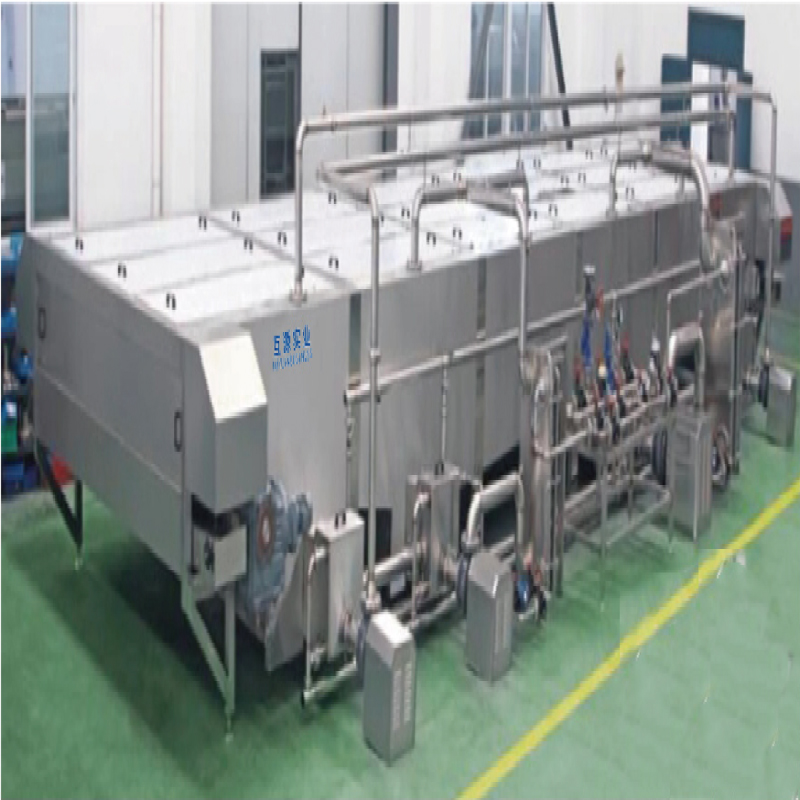

HY-PL series continuous spray machine

Continuous spray sterilization machine absorbs Germany, Italy, Taiwan and other similar equipment technology out of the new design. The three-stage treatment of circulating hot water spray sterilization, warm water precooling and cold water cooling, the sterilization temperature and time are continuously adjustable according to user needs, and the automatic control is highly automatic. Spray sterilization machine is used in a variety of bottled, canned drinks, canned fruit and other food normal pressure pasteurized.

Performance Characteristics

The spray sterilization machine uses famous brand Rexnord high temperature resistant polypropylene chain board, temperature control using Japanese digital display temperature controller, continuous spray sterilization machine body is all made of imported stainless steel manufacturing, stable and reliable operation, beautiful and generous appearance.




Technical Parameters
SpecificationsPL11APL11BPL12PL11CPL11
Miximum sterilization temperature100℃100℃100℃100℃100℃
Sterilization,precooling and cooling zone length5m,1.9m,1m
7m,1.9m,1m11.4m,2.8m,1m5m,1.9m,1m4m,1.5m,1m
Mesh belt width1.5m1.5m2m1.5m1.5m
Wire speed of mesh tape110~553mm/min
Motor power(KW)10.3511.8513.8512.557.5
Equipment weight3700kg4700kg7800kg3700kg3200kg
shape size(m)9.06*2.48*18.3511.06*21.8*18.3516.97*2.74*1.849.59*2.48*1.837.66*2.48*1.83
